OPNexus

All your OPNsense firewalls. One console. Central management for multiple OPNsense firewalls: rules, aliases, NAT, VPN, certificates, logs and updates — rolled out through the OPNsense API with preview, confirmation and automatic rollback.

Website · Changelog · Handbook (German) · Deutsch

Status: 1.33.0 is the current stable release. It has been developed and tested against real OPNsense instances; a clean install from the release bundle, updates and rollbacks have been verified end to end. Please report rough edges.

What it does

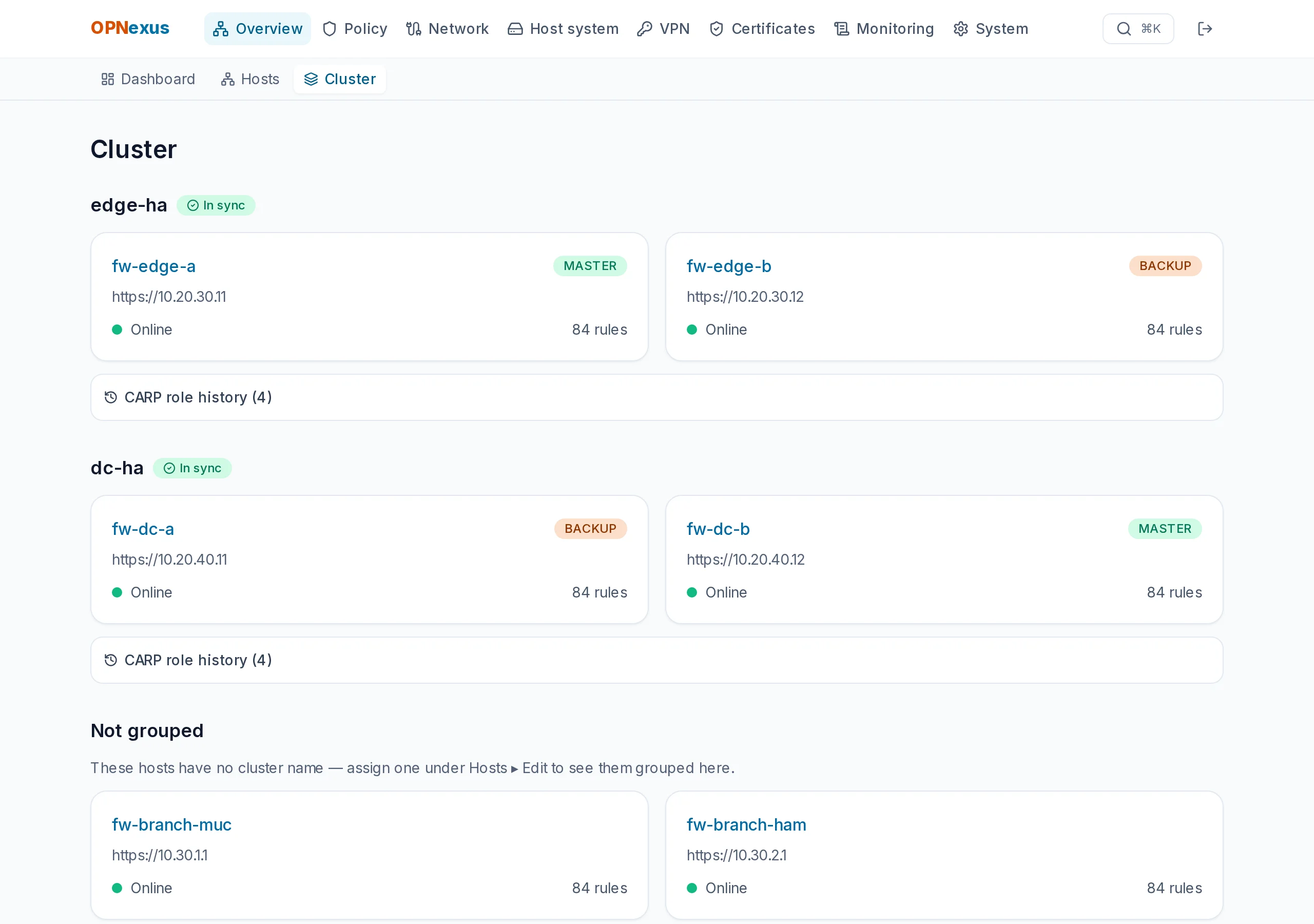

• Fleet & high availability — live status of all hosts, CARP roles side by side, event history, alerts for split-brain or a missing MASTER, maintenance mode with an optional auto-revert timer.

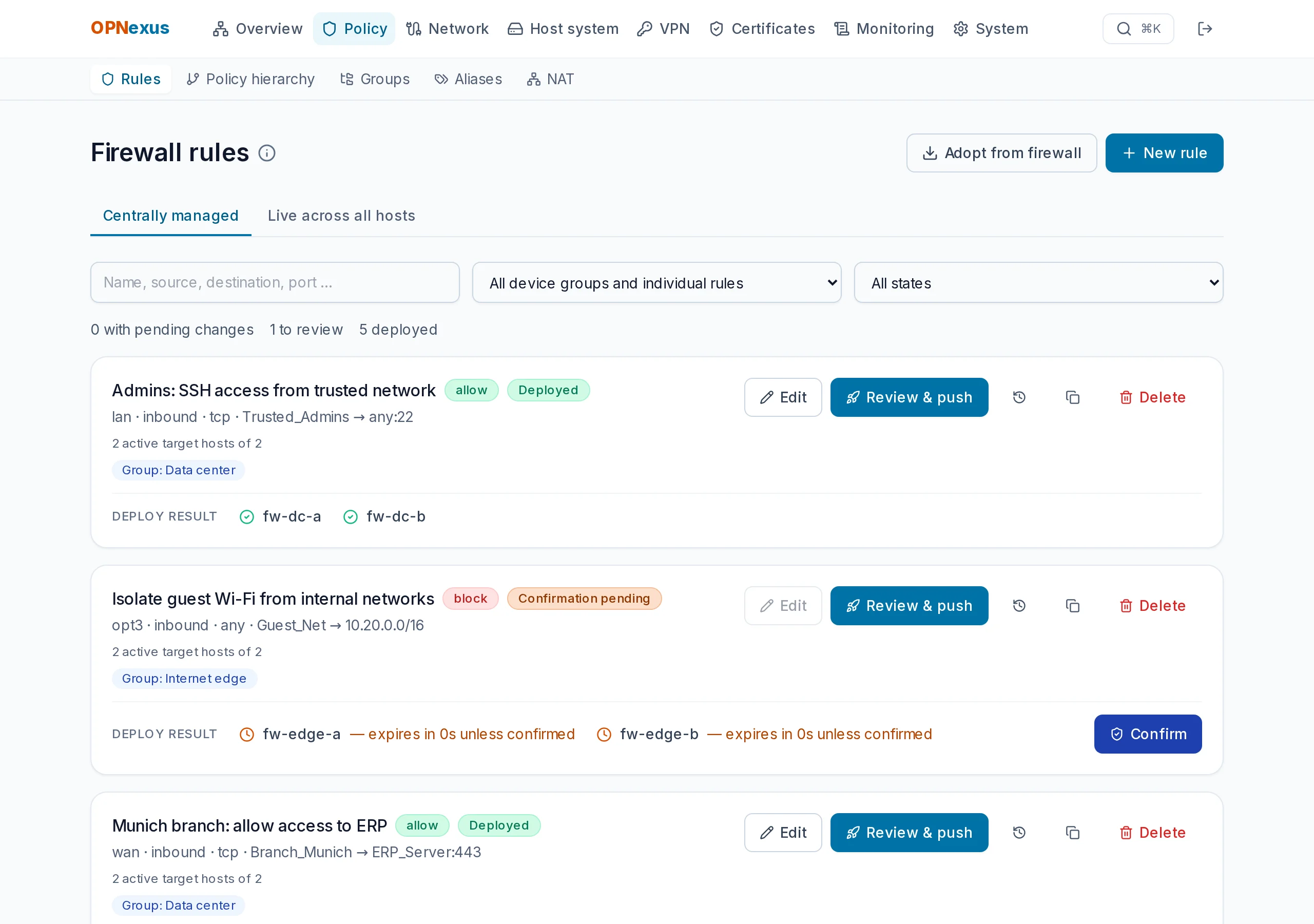

• Rules, aliases & NAT — maintained centrally, rolled out to single hosts or device groups; port forward, 1:1 and outbound NAT with drift detection between cluster nodes.
• Safe changes — every change goes preview → deploy → confirm; without your confirmation inside the time window OPNexus rolls it back.
• Hierarchical policies — pre/post rulebases with inheritance across group trees.
• VPN — IPsec site-to-site, OpenVPN and WireGuard, defined once and rolled out.
• Network — interfaces, VLANs, virtual IPs, gateways, routes, LAGG/bridge/GRE, DNS and DHCP per firewall, plus tunables, cron, syslog, snapshots and diagnostics (ping, traceroute, port check, DNS), a comparison of cluster nodes, with a diff preview, a backup before every change and a guard against cutting your own connection; rules, aliases and NAT rules created by hand on a firewall can be adopted.
• Certificates — trust store for all firewalls and ACME / Let's Encrypt issuance.
• Alerts — gateway/WAN outage (down, packet loss, latency), disk/memory/swap/CPU thresholds and stopped services, debounced over several measurements so spikes and flapping links stay quiet; delivered by email, webhook, ntfy, Gotify, Telegram, Microsoft Teams or Matrix, all switchable per event.
• Firewall interface through OPNexus — open a firewall's own web interface in a separate browser tab through OPNexus, even behind NAT; admins only, one-time ticket, isolated origin, time limits and audit (off by default).
• Logs & audit — central log search with correlation, dashboards and a complete deploy audit trail.
• Update center & rollouts — firmware updates for the fleet, aware of HA order and maintenance mode; rollouts in waves (canary → pilot → prod) with recurring maintenance windows, a health gate between the waves (including optional reachability probes run from the firewall) and an automatic stop on anything unusual. Before every update OPNexus creates a ZFS boot environment as a rollback point, and a guided "back to previous firmware" restores it.
• Configuration as code — export rules, aliases, NAT, groups, the policy hierarchy and site variables as one YAML file for Git and review, and import it again: a plan first (new / changed / removed / blocked), then a one-transaction apply that only changes OPNexus' drafts (never a firewall). opnexus export / opnexus apply --dry-run for the console and CI.
• Setup assistant — a guided first run after installation: your own password, two-factor, and connecting the first firewall.
• Self-update — OPNexus can update itself from its web interface, with progress and automatic rollback (opt-in).
• Automation — personal API tokens (read / deploy / admin), Prometheus metrics, a read-only MCP endpoint for AI assistants and an OpenAPI schema.
• Security posture — a 0–100 score per firewall from hardening and rule-hygiene checks (open WAN rules, weak SSH/SNMP, shadowed rules, stale backups …), read-only.
• Rule analysis — "Which rule matches?" for a source, destination, protocol and port: the deciding rule per firewall (or fleet/group) with an honest confidence (sure / probable / unknown) and a rule-by-rule trace, read-only. A cleanup list names unused, shadowed, duplicate and long-disabled rules (each with its confidence); an administrator can switch selected rules off (preview, then roll-out with an automatic revert unless confirmed), delete them later and restore them from a backup of their content. Every rule has a change history, including changes made outside OPNexus.
• Backups & recovery — scheduled config backups with retention, an encrypted offsite copy to S3-compatible storage, a redacted change view between backups, and a full encrypted backup/restore of OPNexus itself (opnexus backup --full).
• Single sign-on — sign in with your identity provider (OIDC); roles come from its groups at every login.
• Access — HTTPS with pinned firewall certificates, optional two-factor sign-in, roles (admin / operator / read-only), keyboard operation, dark mode, German and English UI.

All screenshots show fictitious sample data.

Guides

• Manage OPNsense firewalls centrally – when central management pays off and how it works
• Manage OPNsense HA clusters with CARP – roles, alerts, ordered updates, comparing both nodes
• Roll out OPNsense rules safely – preview, confirmation window and automatic rollback
• The opnexus command-line tool – update, roll back and back up an installation

Quick start

Requires Docker with the Compose plugin.

git clone https://git.opnexus.dev/opnexus/opnexus.git
cd opnexus
install -m 600 .env.example .env   # set POSTGRES_PASSWORD (and ADMIN_PASSWORD); readable by you only
docker compose up -d --build

The UI is then available at http://localhost:3100. Without ADMIN_PASSWORD a random admin password is generated on first start and printed once in the backend log. Lost it, or never saw it? This sets a new random one and prints it (use scripts/opnexus in a repo checkout, ./opnexus in the release bundle):

scripts/opnexus password

After the first sign-in a short setup assistant opens on its own: set your own password, optionally enable two-factor sign-in, connect your first firewall (including how to create the API key in OPNsense). You can skip it and reopen it any time under System › Setup.

Windows: run it in Docker Desktop with WSL 2 – see the installation guide for Windows. OPNexus is developed and tested on Linux; for permanent operation a Linux server or VM is the better choice.

For access from other machines and for production use with TLS (bundled Caddy proxy), see the handbook (German).

Prebuilt images (amd64 and arm64) are published to this Gitea's registry. In .env:

OPNEXUS_IMAGE_REPO=git.opnexus.dev/opnexus
OPNEXUS_VERSION=1.33.0

docker compose pull && docker compose up -d --no-build

scripts/opnexus update / rollback then update the installation (pull first, database backup before migrations, automatic rollback if the services do not become healthy).

Updating from the web interface is available as an opt-in: set COMPOSE_PROFILES=updater in .env and an administrator can update (and roll back) under Settings › Update OPNexus. It runs as a separate small container that is the only one with Docker access — see the handbook (German) for the security model.

Privacy

OPNexus is self-hosted and has no telemetry. It only connects to your firewalls and to notification targets you configure yourself. The optional new-version notice (switch under Settings › Update OPNexus, or UPDATE_CHECK_URL in the .env) is off unless you turn it on; when on, it makes one plain GET at most every 12 hours with the user agent OPNexus/<version> — no instance or user data.

License

OPNexus is source-available under the PolyForm Shield License 1.0.0 — it is not open source in the OSI sense. You may download, read, modify and use it, including inside a company for its own firewalls. You may not use it to provide a product that competes with OPNexus (for example reselling it or offering it as a hosted service). The license text is authoritative.

Security

Please report vulnerabilities privately to [email protected], see SECURITY.md.

---

OPNexus is an independent project and is not affiliated with Deciso B.V. or the OPNsense® project. OPNsense® is a trademark of Deciso B.V.
